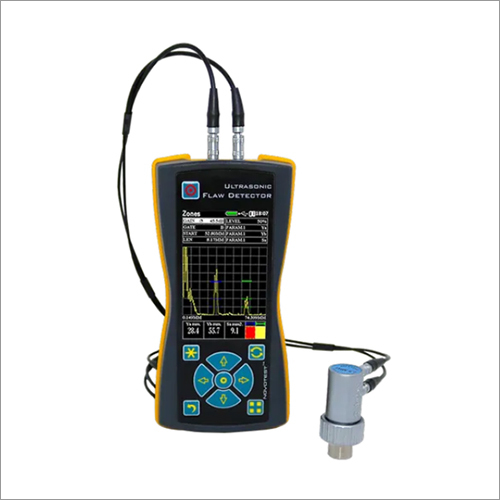

Novotest Ultrasonic Flaw Detector

Velocity

1000 - 9999 m / s

Model Name/Number

UD2303

Gain

126 dB

Dimension

165x90x50 mm

Display Type

Digital

Frequency

1 to 100 MHz

Weight

500g

Operating frequency range

from 1 to 10,0 MHz

Range of measured time intervals (duration of scanning)

from 6 to 1000 s

Velocity range

1000 - 9999 m / s

Error of measurement of time intervals

not exceed +/- 0,025 s

Maximum permissible error of measurement of the amplitudes of the signals at the receiver input in the range from 0 to 110 dB

not exceed +/- 0,5 dB

Testing gain range

126 dB

Averaging over the quantity of starts

from 1 to 128

Range of variation of temporal sensitivity adjustment (TVG)

1-40 dB

Number of control points TVG

16

Duration of the excitation pulse to the load

from 12.5 to 0,5 s

Scan range

from 8 up to 250 s (500 and more by special order)
or from 0,48mm up to 1500mm (in Steel V 6000m/s) (3000m and more by special order)
